Q-School Online | VERS Linear LED Fixtures
QTL VERS Optics (05)
VERS-OPTICS (05)

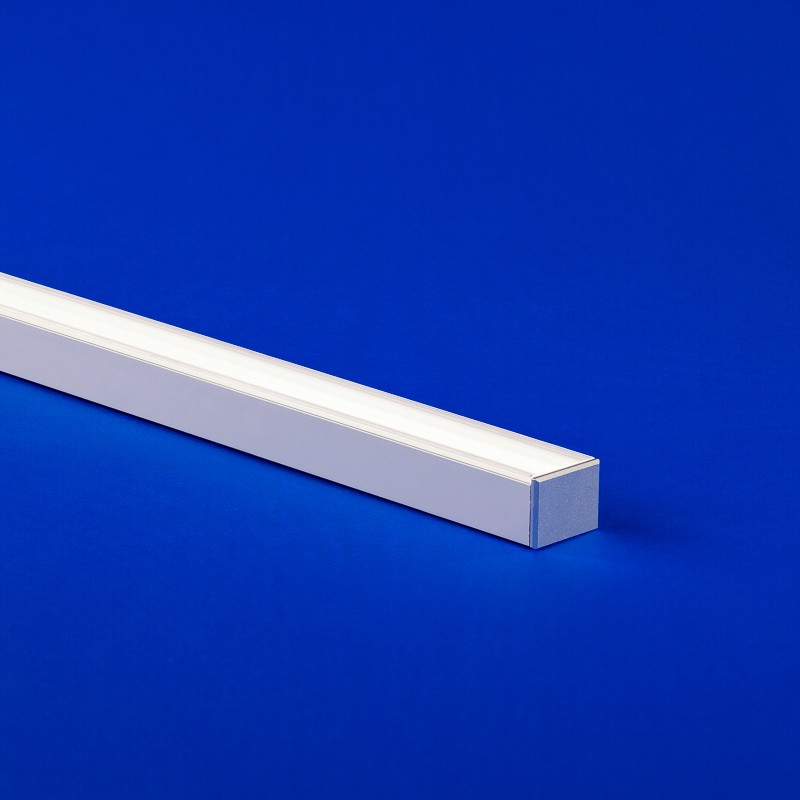

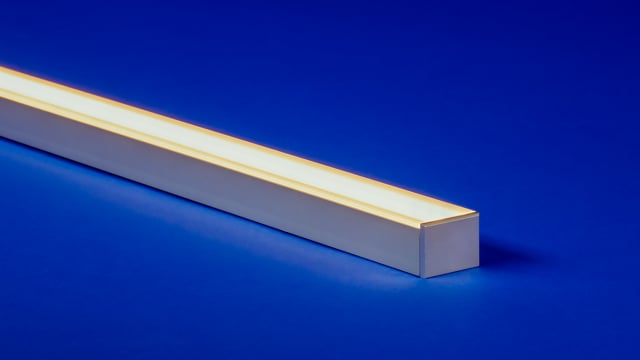

24V DC Surface & Recessed Linear LED Fixtures
Optically enhanced VERSatile fixture provides precision beam control for when precision lighting is needed.
| • The high-quality lens features a proprietary diffusing agent for superior beam control and clean edges • Features integrated metal endcaps • Mounting options include a concealed or magnetic clip • With an internal White Optics coating, the fixture achieves greater lumen output • Durable anodized aluminum housings • Consult factory for field assembly options |
More About
VERS-OPTICS (05)
Technical Information
| Watts per Foot | 1.5, 3.0, 4.0, 5.0, 6.0, HE1.5, HE3.0, HE6.0, HE9.0 |
| Finish | Satin, Black, Bronze, White, Custom |
| Mounting | Concealed Clip, Magnet |
| Rated | Dry IP20 |
| Warranty | 5 year |
| Photometric Performance | Optical 40°, Optical 50° |
| LED Light Engine | Warm Dim, Static White High-Efficacy, Dynamic White High-Efficacy, Static White, Dynamic White, Static Color, RGB |
| Length | Fixture length min 12", max 98" notincluding end caps. Consult factoryfor lengths under 12". |
| Lenses | Optical |
| Lumens per Foot | 338 at SW 4.0 w/f |
| CCTs | 2000K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K |
| Certifications | UL Listed, 1 Bin 1 Step, RoHS, JA8-2016, JA8-2019, Closet Rated Light Fixture Light Fixture NEC 410.2 and 410.16, Declare, FWC |
| Compatible App | SCENE Dongle |
| Connector Wire | Bare Wire 36", Connector 24", Connector 6" |
| CRI | 97-98 at 3000K |
| Environment | Indoor |
| External Louver | White Plastic, Black Plastic, Satin Anodized AluminumBlack Anodized Aluminum, White Powder Coated Aluminum, No Louver |
| Product Applications | Surface Mount, Cove Lighting, Millwork Lighting |
