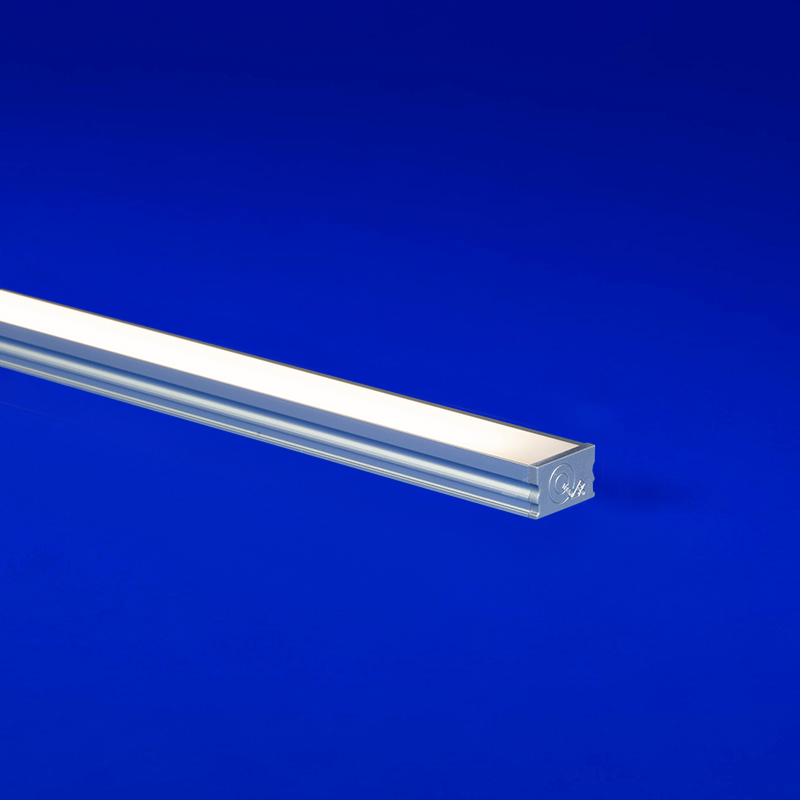

LALO-FLAT (01) lis a LED light fixture offering 4 lens options with sleek flat profile for direct and indirect mount applications
LALO-FLAT (01) lis a LED light fixture offering 4 lens options with sleek flat profile for direct and indirect mount applications
ESSENTIALS LALO-FLAT (01) DIMENSION
Calculate ESSENTIALS LALO-FLAT (01) Length

ESSENTIALS LALO-FLAT (01)

Surface Mount Linear LED Fixtures
1-Bin, 1-Step
UL Listed LED lighting products
RoHS LED lighting product
JA8 Lighting
Title 24 Lighting
NEC Closet Certified
Certified Wildlife Lighting
5 Year Warranty
Declare Label Approved Lighting
Red List Approved
Buy American Act - Select Light Engines, See Spec Sheet

Offers four lens options with a sleek flat profile

• Shallow, low-profile linear LED fixture for surface mount applications
• Choose from diffused, polar, frosted, or clear lens options for varying diode visibility and beam angles
• Effortless installation with various mounting options, including stainless steel clips, magnets, and low-profile magnet mounts.
• Features painted end caps to match LED extrusion finish
• Suitable for installation in the storage area of a clothes closet when specified with LEDs at 4.0 watts or less per foot per NEC regulations
• Suitable for exterior use when specified as wet

Calculate Length
More About ESSENTIALS LALO-FLAT (01)
Technical InformationVideosRelated Products

Technical Information

Watts per Foot 1.5, 3.0, 4.0, 5.0, 6.0, HE1.5, HE3.0, HE6.0
Finish Satin, Black, Custom
Mounting Stainless Steel, Magnet Clip
Rated Dry IP20, Damp IP54, Wet IP67
Warranty 5 year
Photometric Performance Diffused, Polar, Frosted, Clear
LED Light Engine Warm Dim, Static White, Static White High Efficacy, Static White High Efficacy Plus, Dynamic White, Dynamic White High Efficacy, Warm Dim, Static Color, RGB, RGBW High Efficacy
Length Fixture length min 12", max 98.43" not including end caps. Tolerance +0 – 1/8". Consult factory for lengths under 12".
Lenses Clear, Frosted, Polar, Diffused
Lumens per Foot 310 at SW 4.0 w/f
CCTs 2000K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K
Certifications UL Listed, RoHS, JA8-2016, JA8-2019, 1 Step 1 Bin, Declare, Closet Rated Light Fixture NEC 410.2 and 410.16
Compatible App SCENE Dongle
Connector Wire Bare Wire 24", Barrel 6", Connector 24", Connector 6"
CRI 98 at 3000K
Dimensions 0.70" x 0.42"
Environment Indoor/Outdoor
Product Applications Surface Mount, Cove Lighting, Millwork Lighting, Perimeter Lighting
