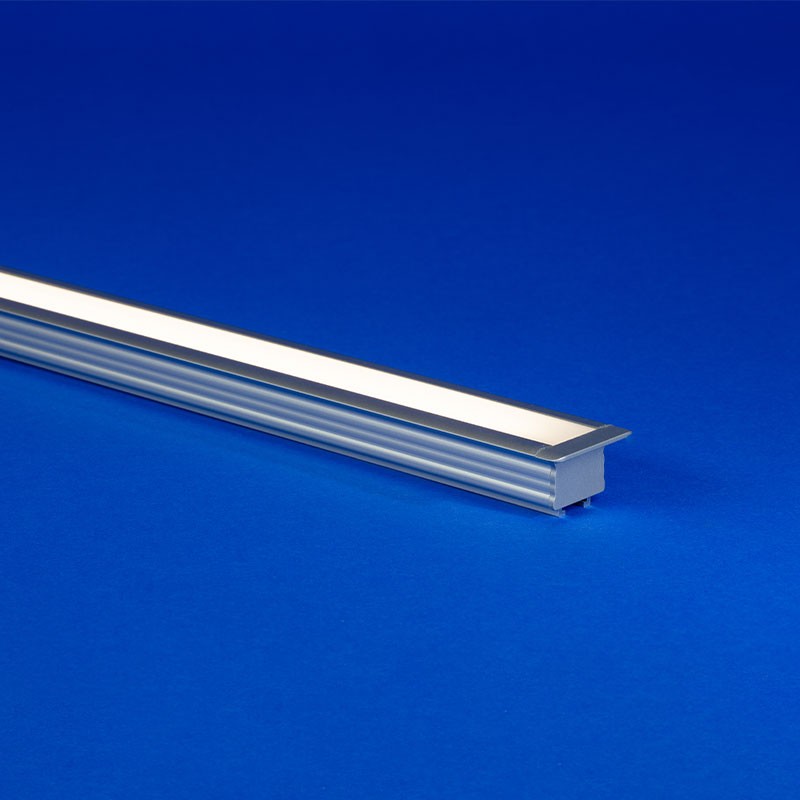

ESSENTIALS EMBD-FLAT (01)
Recessed Linear LED Fixtures
Offers three lens options with a sleek flat profile
|
More About
ESSENTIALS EMBD-FLAT (01)
Technical Information
| Watts per Foot | 1.5, 3.0, 4.0, 5.0, 6.0, 1.5HE, 3.0HE, 4.0HE, 6.0HE, 3.0HE+, 6.0HE+ |
| Finish | Satin, Custom |
| Mounting | Spring Clip, Magnetic Clip, Magnetic Mount Accessory |
| Rated | Dry IP20, Damp IP54, Wet IP67 |
| Warranty | 5 year |
| Photometric Performance | Diffused, Polar, Frosted |
| LED Light Engine | Static White, Static White High Efficacy, Static White High Efficacy Plus, Dynamic White, Dynamic White High Efficacy, Warm Dim, Static Color, RGB, RGBW, RGBW High Efficacy |
| Length | Fixture length min 12", max 98.43" not including end caps. Tolerance +0 – 1/8". Consult factory for lengths under 12". |
| Lenses | Frosted, Polar, Diffused |
| Certifications | UL Listed, RoHS, JA8-2016, JA8-2019, 1 Step 1 Bin, Declare, Closet Rated Light Fixture NEC 410.2 and 410.16, FWC |
| Compatible App | SCENE Dongle |
| Connector Wire | Bare Wire 24", Barrel 6", Connector 24", Connector 6" |
| CRI | 98 at 3000K |
| Dimensions | 1.14" x 0.71" |
| Environment | Indoor/Outdoor |
| Product Applications | Linear Recessed, Cove Lighting, Millwork Lighting |
